I7 6700T Ddr4 32GB Embedded Mini Computer 2133MHz AMI EFI Dual Display

Name: I7 6700T Ddr4 32GB Embedded Mini Computer 2133MHz AMI EFI Dual Display
Brand: Sihovision
Price: 1 USD

Cheap I7 6700T Ddr4 32GB Embedded Mini Computer 2133MHz AMI EFI Dual Display for sale

Brand Name : Sihovision

Model Number : SM708

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 Piece

Price : negotiable

Payment Terms : T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram

Name : Fanless Pc

Type : Embedded Computer

CPU : i7 6700T

Graphics card type : Integrated Card

Storage : Support 1*MSATA, 2*2.5''HDD

RAM : Support 2*DDR4 2133MHz

Wifi : Yes (Optional)

Temp : -20℃～60℃

Material : Aluminum Alloy

Color : silver/black

Operating system : Window 7/ 8 /10, Linux Ubuntu

Weight : 4 kg

dimension : 210 * 240 * 83.5 mm

Warranty : 12 Months

Contact Now

High-End Configuration Fanless Pc I7 6700T Ddr4 32GB Embedded Computer

Key Features:

Stable performance, lower power consumption.
Intel Core i3 6100T (dual core 4 threads,3.2 GHz)·
lntel Core i5 6500T (quad core 4 threads,2.5 GHz,Max turbo 3.1 GHz).
Intel Core i7 670OT (quad core eight threads,2.8 GHz,Max turbo 3.6 GHz).

Efficient heat dissipation
High quality aluminum case
Quickly heat dissipation.Fanless design for dustproof,shockproof and no noise.

Main function
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (o～255 level)

Full HD Dual Display
Support synchronous and asynchronous dual display

Various applications
Small PC with high-end configuration.


Specification

Model:SM708
PC
CPU (Optional)Intel Core i3 6100T (dual core, 4 threads, 3.2GHz)

 Intel Core i5 6500T (dual core, 4 threads, 2.5GHz, MaxTurbo 3.1GHz)
 Intel Core i7 6700T (Quad core, 8 threads, 2.8GHz,Max turbo 3.6GHz)
RAMSupport 2*DDR4 1866/2133MHz SODIMM RAM Slot, Max support 32GB
StorageSupport 1*MSATA, 2*2.5''HDD ( support RAID0/1)
BIOSAMI EFI BIOS
Display ChipIntegrated Intel HD Graphics 530
Display Port1*VGA, 1*HDMI, 1*DP (Support synchronous and asynchronous dual display)
I/O8*USB3.0, 3*Intel 1000M LAN, 1*Power Switch,1*MIC,2*Speaker, 6*COM(COM1, COM2 RS232/422/485 Optional), 1*DC power supply phoenix
 connector, 1*VGA, 1*HDMI, 1*DP, 1*Keyboard or Mouse port
ExpansionSupport 1*MINI PCIE slot (WIFI/3G/4G Optional), embedded SIM slot
 Support 1*MINI PCIE Slot (MSATA/3G/4G Optional), embedded SIM slotOptional Port: 16Pin GPIO, 4*USB2.0 (standard version without
 these port)
Expansion Slot1*PCIE X16 slot + 1*PCIE X4 slot + 2*PCI slot,Max length of expansion card: 210 mm
Network2* Intel i211-AT 1000M Lan, 1 *Intel i219-LM 1000M Lan(support Vpro Technology )
Other FunctionAuto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0～255 level) (Standard version doesn’t set
 these function)
Power Supply
Power SupplySupport DC 9V~36V wide voltage input, Support positive pole and negative electrode connect reversely protection
Operating Environment
Work Temp0℃ ～ +50℃ (Commercial HDD),-20℃ ～ +60℃ (Industrial SSD), Surface air flow
Work Humidity0% ～ 95% non-condensing
Packing Details
Dimension210 * 240 * 83.5 mm
Net Weight4 kg
ApplicationIndustrial Automation, Medical, Logistics Transportation, Warehouse, Machine Vision, etc.
Enclosure
MaterialHigh quality aluminum alloy+ sheet metal structure
ColorTitanium gray
Other
Mounting (options)1) provide wall brackets for wall-mounting, VESA 100×100mm
 2) provide stable metal holder to support the monitor
Customization3G,4G,Webcam, RFID reader etc. optioanal
Warranty1 year warranty

Pictures

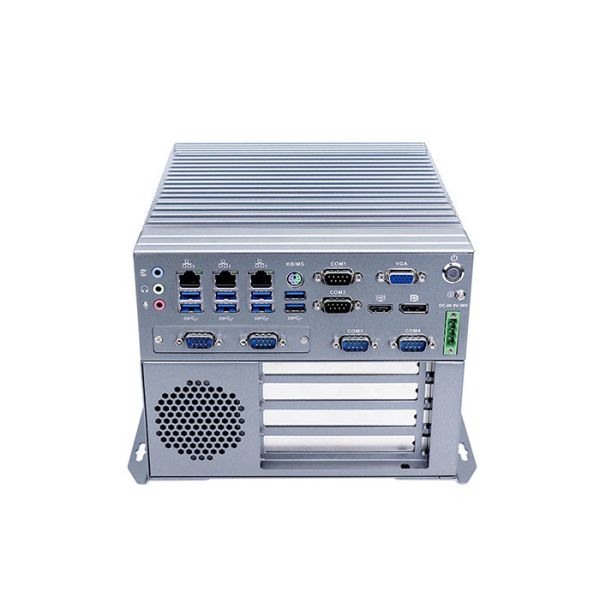

I7 6700T Ddr4 32GB Embedded Mini Computer 2133MHz AMI EFI Dual Display

Product Tags:

I7 6700T Embedded Mini Computer

Ddr4 32GB Embedded Mini Computer

AMI EFI Industrial Fanless Pc

I7 6700T Ddr4 32GB Embedded Mini Computer 2133MHz AMI EFI Dual Display Images
